Ford Kuga

 Owners Manual

Climate Control
Hints on Controlling the Interior Climate

General Hints

Note:Prolonged use of recirculated air may cause the windows to fog up. Note: A small amount of air may be felt from the footwell air vents regardless of the air distribution setting. Note: To reduce humidity build-up inside your vehicle, do not drive with the system switched off or with recirculated air always switched on. Note: Do not place objects under the front seats as this may interfere with the airflow to the rear seats. Note: Remove any snow, ice or leaves from the air intake area at the base of the windshield.

Manual Climate Control

Note: To reduce fogging of the windshield during humid weather, adjust the air distribution control to the windshield air vents position. Increase the temperature and fan speed to improve clearing, if required.

Automatic Climate Control

Note: Do not adjust the settings when your vehicle interior is extremely hot or cold. The system automatically adjusts to the previously stored settings. For the system to function efficiently, the instrument panel and side air vents should be fully open.

Note: At low ambient temperatures with AUTO selected, the air stream is directed toward the windshield and side windows for as long as the engine remains cold.

Note:When the system is switched off, outside air is prevented from entering your vehicle.

Note:When the system is in AUTO mode, and the interior and exterior temperatures are high, the system automatically selects recirculated air to maximize cooling of the interior. When the selected air temperature is reached, the system automatically selects outside air.

Note:When you select windshield defrosting and defogging, the instrument panel and footwell level functions automatically switch off and air conditioning switches on. Outside air flows into your vehicle.

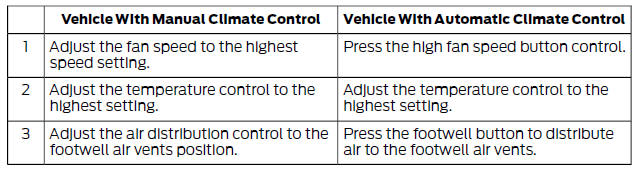

Heating the Interior Quickly

Recommended Settings for Heating

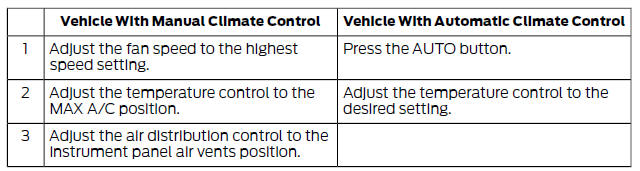

Cooling the Interior Quickly

Recommended Settings for Cooling

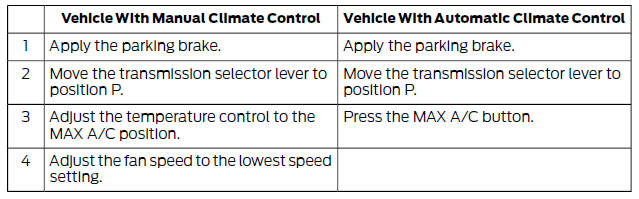

Vehicle Stationary for Extended Periods During Extreme High Ambient Temperatures

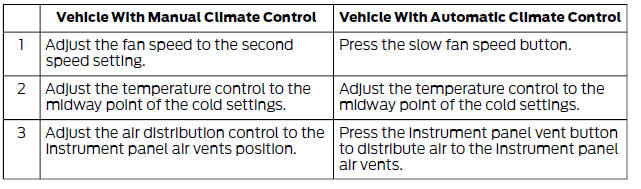

Side Window Defogging in Cold Weather

Maximum Cooling Performance in Instrument Panel or Instrument Panel and Footwell Positions

1. Adjust the temperature control to the lowest setting.

2. Press the A/C and recirculated air buttons.

3. Adjust the fan speed to the highest setting initially and then adjust it to suit the desired comfort level.
