Supplemental Restraint System » Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) (Overview)
Pyrotechnic belt pretensioner

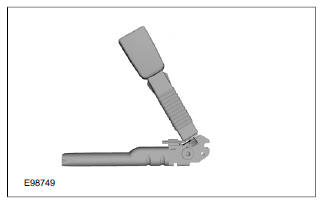

The pyrotechnic pretensioners for the driver and front passenger safety belts are incorporated into the safety belt buckle stalks.

The following instructions must be followed when removing, installing or replacing the safety belt tensioner:

• Note the position and routing of the safety belt buckle pretensioner wiring harnesses to aid installation. An incorrectly routed wiring harness may lead to the wiring harness becoming damaged on the seat mechanism.

Side airbag

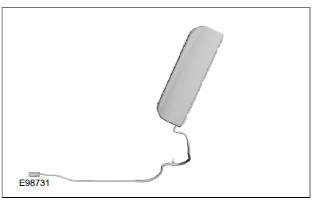

The side airbag modules are integrated in the backrests of the front seats. A label is sewn onto seats with side airbag modules to indicate that a side airbag module is fitted to the seat.

Overview

Restraints control module (RCM)

Pyrotechnic belt pretensioner

Side air curtain module

Crash sensor, left/right

Passenger air bag module deactivation (PAD) switch

Front impact sensor
