Ford Kuga

 Service Manual

Climate Control
Air Inlet Blend Door Actuator(34 606 0)

Removal

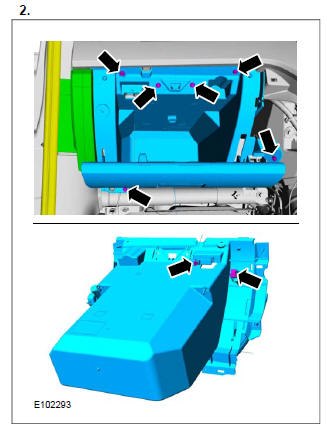

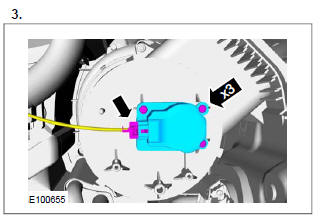

1. Refer to: Floor Console Extension - Vehicles With: Center Armrest (501-12 Instrument Panel and Console, Removal and Installation).

Installation

1. To install, reverse the removal procedure.
