Ford Kuga

 Service Manual

Climate Control
Suction Accumulator

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. Remove the right-hand headlamp.

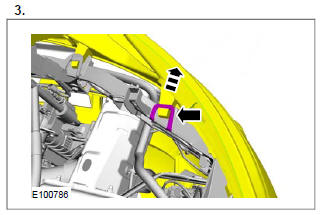

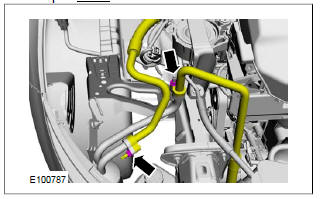

4. CAUTION: Make sure that all openings are sealed.

Torque: 8 Nm

5. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

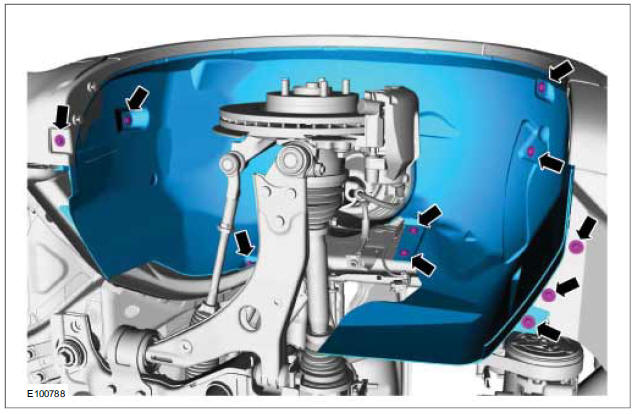

6.

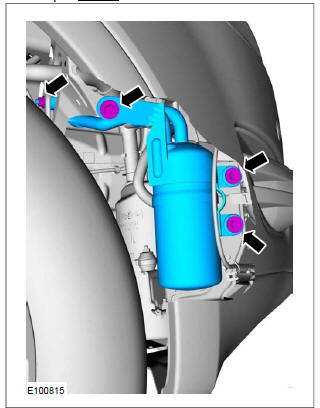

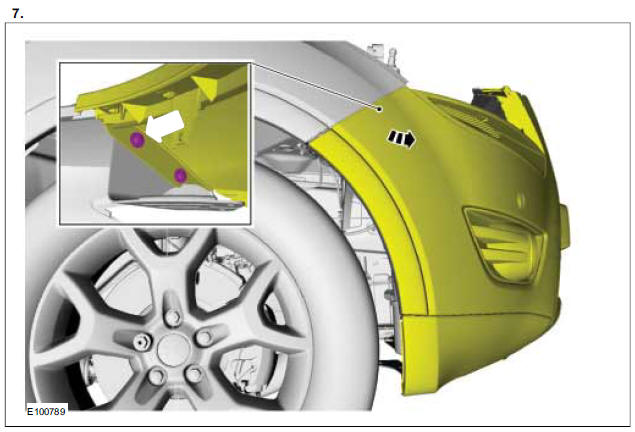

8. Torque: 18 Nm

Installation

1. To install, reverse the removal procedure.

2. Coat the O-ring seals on the refrigerant lines.

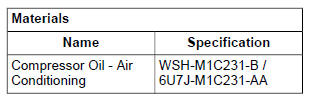

Material: Compressor Oil - Air Conditioning (WSH-M1C231-B / 6U7J-M1C231-AA) refrigerant oil
