Ford Kuga Service ManualFront Drive Halfshafts
Outer Constant Velocity (CV) Joint Boot
Ford Kuga
Service Manual
Outer Constant Velocity (CV) Joint Boot
Special Tool(s)
 |
204-169 Clamping Tool, Boot Retaining Clamp |
Removal

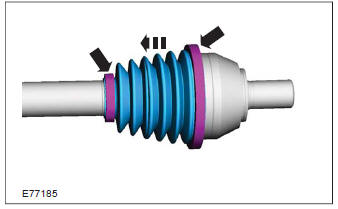

1. Remove the inner CV joint boot.
Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).
Installation

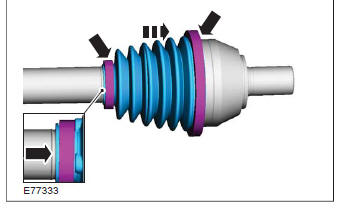

- Fill the CV joint with grease.
- Insert a small screwdriver under the boot seat to allow the air to escape.

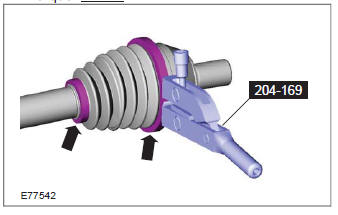

2. Special Tool(s): 204-169 Torque: 21 Nm
3. Install the inner CV joint boot.
Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).
