Ford Kuga

 Service Manual

Engine- 2.5L Duratec (147kW/200PS) - VI5
Valve Clearance Adjustment

Special Tool(s)

303-1183 Holder, Camshaft

1. Remove the camshafts.

Refer to: Camshafts (303-01 Engine - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

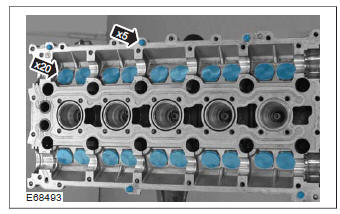

CAUTION: Make sure that the valve tappets are installed in their original locations.

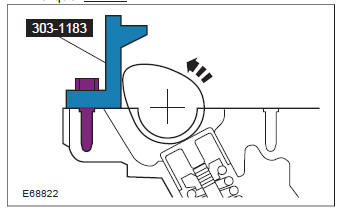

3. Install only one pair of tappets and the camshaft for the first measurement.

Special Tool(s): 303-1183

Torque: 17 Nm

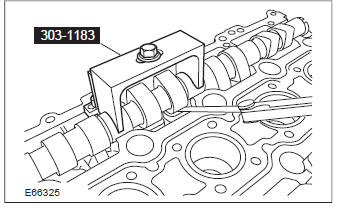

4. Measure the valve clearance and if neccessary, adjust by installing new tappets.

Special Tool(s): 303-1183

Torque: 12 Nm

5. Repeat the measuring procedures for all cylinders on the intake and on the exhaust side.
