Ford Kuga

 Service Manual

Engine- 2.5L Duratec (147kW/200PS) - VI5
Valve Stem Seals  (21 238 0)

Special Tool(s)

	303-361B Compressor, Valve Spring
	303-361B-06 Adapter for 303-361B
	303-363 Adapter, Air Supply (Cylinder Head)
	303-508 Pliers, Valve Stem Seal

Removal

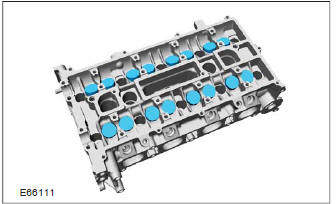

1. Remove the camshafts.

Refer to: Camshafts (303-01 Engine - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

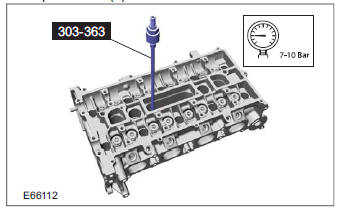

3. Using the special tool, apply 7 to 10 bar of compressed air into the cylinder.

Special Tool(s): 303-363

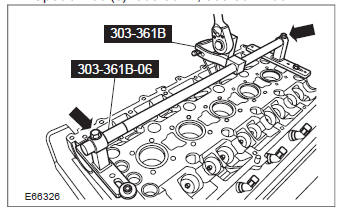

4. Special Tool(s): 303-361B, 303-361B-06

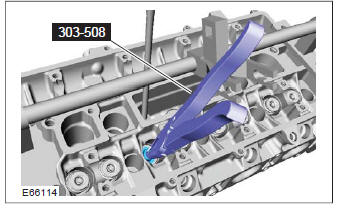

5. Special Tool(s): 303-508

Installation

1. To install reverse the removal procedure.

Engine (Component Location)

Engine (Overview)

Engine (System Operation and Component Description).
